U17-5
Call for Pricing
Special Offers
Save Up to $8,500 or Pay 0% A.P.R. For Up to 36 Months With 0% Down on KX and U Series!*
EXCAVATORS
$0 Down, 0% A.P.R. for up to 36 Months or Save up to $8,500 on Construction Equipment!
CONSTRUCTION
Specs & Compare
Compare models.

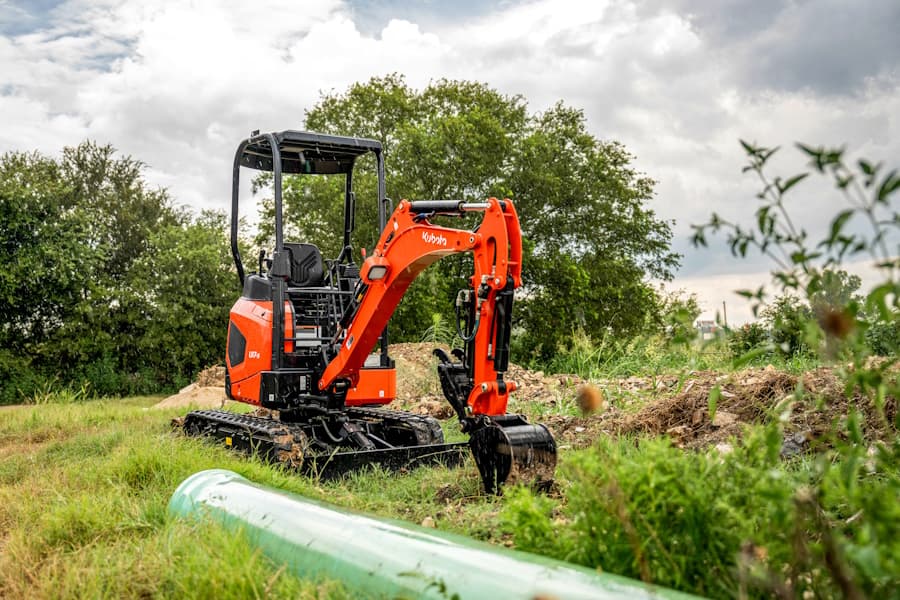

U17-5
HP
Call for Pricing
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
8.7 kN (887.2)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
7.3 (27.7)
Blade Height, in (mm)
10.2 in (260)
Blade Width, ft (mm)
4 ft 3.2 in (1300) / 3 ft 3 in (990)
Bucket Breakout Force, lbs (kgf)
15.8 kN (1609)
Crawler Length, ft (mm)
5 ft 2.2 in (1580)
Displacement (cu. in.)
54.8
Engine Model
Kubota D902-E4-BH-6EU
Fuel Reservoir, gal (l)
5.3 (13)
Ground Contact Pressure psi, kgf (cm2)
4.0 (0.29)
Horsepower (gross)
16.1
Hydraulic Oil Reservoir / System, gal (l)
3.4 (13) / 5.8 (21.8)
Min. Ground Clearance, in (mm)
6.1in (155)
Operating Weight, lbs (kg)
3902 (1770)
Overall Height, ft (mm)
7 ft 9.3 in (2370)
Overall Length, ft (mm)
11 ft 7.7 in (3550)
Overall Width, ft (mm)
3 ft 3.4 in (1000) / 4 ft 3.2 in (1300)
Pump Capacity, GPM (LPM)
4.6 (17.3)
Traveling Speed: High, mph (kph)
2.7 (4.4)
Traveling Speed: Low, mph (kph)
1.4 (2.3)
