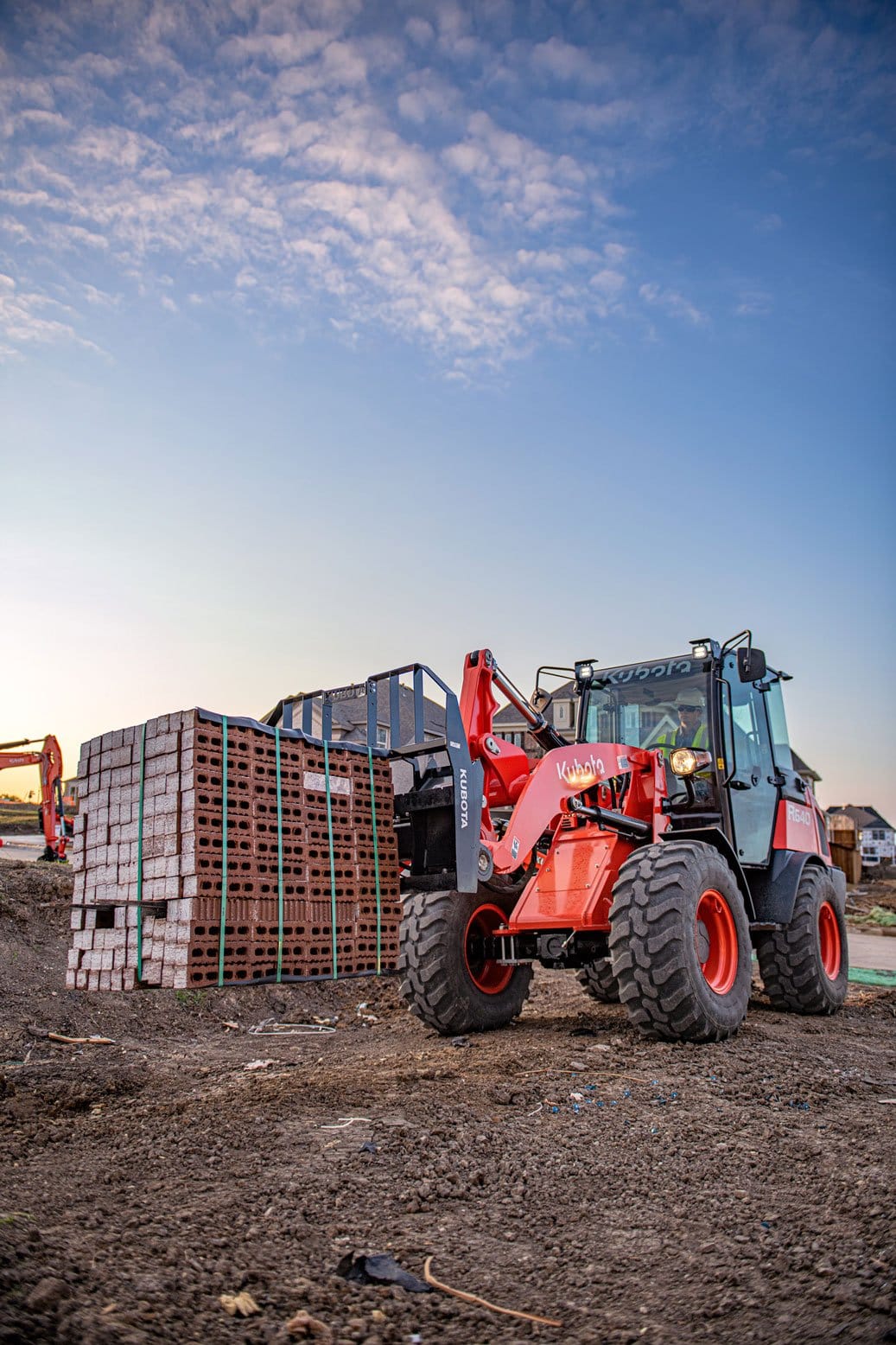

As graceful as a dancer and built like a heavy-weight, the Kubota R540 easily navigates crowded work sites and flexes its muscle wherever it’s needed. The wheel loader sports a hearty 51.1 horsepower and a breakout force of 7,761 pounds, all while keeping you comfortable in its spacious cab. Climb on in-- it’s time for work.

Shop

Find Parts

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • Construction

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!

    Construction
  • WHEEL LOADERS

    Save up to $3000 or 0% A.P.R. for up to 36 Months ON R SERIES!

    WHEEL LOADERS
New Features

New Features

  • High Visibility Cab - enlarged front glass, full size right side window
  • LED Working Lights - moved from Halogen to LED lights; LED lights now standard
  • NEW Delta Shaped Loader Arms - Improves visibility when attaching to an implement or attachment; Also, improves strength and rigidity of the loader arms
  • More Spacious Cab - moved switch console from the steering column to the right side of the cab - enhancing leg and foot space in the cab
  • Reconfigured Console & Switch Layout - switch console now on the right side of the cab; everything needed to operate and run the wheel loader is now located on the right hand side and is a fingertip away

R540

R540

HP

Call for Pricing

Specifications

Angle Of Rear Frame Oscillation (deg.)

±8

Articulation Angle (deg.)

40 (each direction)

Auxiliary Hydraulic Pressure Psi, Kgf (cm2)

2683 (18.5)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

14.2 (53.8)

Brakes ( Service)

Enclosed wet disc

Bucket Breakout Force, Lbs (k N)

8183 (36.4)

Displacement (cu. In.)

160

Dump Height At Fully Raised Position, Ft

8ft 3in

Emission Certification

Tier 4 Final

Engine

V2607

Frame Oscillation Angle

8 degrees

Front/ Rear Axle Traction Lock

Diff-lock (both axles)

Fuel Tank, Gal (l)

18.5 (70)

Ground Clearance, In (mm)

13in (330)

Hinge Pin Height, Ft

10ft 7in

Hydraulic Reservoir, Gal (l)

10.3 (39)

Hydraulic System, Gal (l)

15.1 (57)

Lifting Capacity At Ground Level, Lbs (k N)

6767 (30.1)

Loader Clearance Circle, Ft (mm)

13ft 8in (4175)

Loader Raise / Lower Time, Sec

6.5 / 4.5

Maximum Dump Angle

45 degrees

Operating Weight, Lbs (kg)

9888 (4485) / 10285 (4665)

Output ( S A E J1349 Net) H P/(k W)/rpm

47.9 (35.7) / 2400

Output ( S A E J1995 Gross) H P/(k W)/rpm

50.9 (38) / 2400

Overall Height, Ft (mm)

8ft 1in (2453) / 8ft 2in (2473)

Overall Length, Ft (mm)

17ft 8in (5395)

Overall Width, Ft (mm)

5ft 7in (1712)

Rated Operating Capacity, ( R O C)

2822/2968/2183/2293

Reach Fully Raised At Maximum Dump Angle, Ft

2ft 6in

Standard Bucket Capacity, Yd3

0.85

Standard Tire Size, In

12.5-18

Steering Angle

40 degrees

Tipping Load - Straight, Lbs (kg)

6437 (2920)/6768 (3070) / 4960 (2250)/5202 (2360)

Tipping Load- Full Turn, Lbs (kg)

5644 (2560)/5930 (2690) / 4365 (1980)/4586 (2080)

Traction Force, Lbs (kgf)

6541 (29.1)

Transmission Type

Hydrostatic transmission

Traveling Speed: High, Mph (kph)

12.4 (20.0)

Traveling Speed: Low, Mph (kph)

3.0 (4.8)

Turning Radius Track Circle, Ft (mm)

11ft 11in (3620)
